Thompson Health  Care are  a Privately Owned Aged Care Facility Provider with properties located at Avalon, Mona Vale, Terry Hills, Gordon, Turramurra, Mittagong and now a brand new facility Boronia House. This modern luxurious home features 123 ensuited rooms with courtyards, lounges, dining areas and a beautiful chapel. Located in the Western Sydney suburb of St Marys the home boasts high tech air conditioning for all occupants and staff within this complex.

jonovington-4720

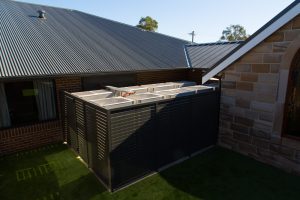

Our task was to Design & Construct a flexible system to provide individual temperature control to all 123 rooms allowing for part or full occupancy. The best solution was the Daikin Variable Air Volume (VRV) IV Heat Recovery using the latest  model REYQ8TY1 to REYQ20TY1, Outdoor Condensing units, having a combined capacity of 640kW Cooling Capacity and  811kW Heating Capacity. This very clever equipment has the ability to heat or cool  simultaneously if required and for the elderly occupants this level of control is the highest standard available.



jonovington-4763The Daikin (VRV) Heat Recovery systems achieve independent temperature conditions in all the rooms, lounge areas, dining rooms, theatre, staff rooms, corridors, chapel, reception foyer, administration & office areas. Each room has a Daikin FXMQ25PVE, 32PVE Fan Coil Evaporator, while the Double Rooms have FXMQ40PVE ducted Fan Coil Evaporator unit, complete with R1.5 Ductmaster Flexible Supply & Return duct work connecting to Paltech Round Diffusers & Hinged Return Air Egg Crate Grilles.

jonovington-4777

Installed in the remainder of the Sleek Modern 9000 square meter building, are Daikin FXMQ100PVE up to FXMQ250PVE, ducted Fan Coil Evaporators, connecting to rigid 75mm Internally Insulated Sheet Metal Duct, Airfoil Linear Diffuser, Linear Bar Grilles, Bradflo Round Diffusers, Egg Crate Return Air Grilles,  distributing perfect heating and cooling.

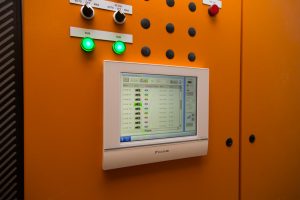

Every room has its own Daikin BRC1E62 Remote Wall Controller and along with the remainder of the building are  wired back to the Daikin Intelligent Touch I Manager standalone Building Air Conditioning Management Solution.

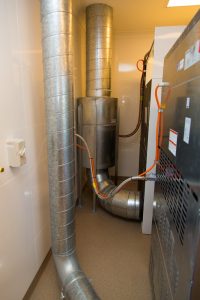

Throughout the building are various Ventilation Systems. The large Commercial Kitchen has Pacific HVAC ICQ500DDE & ICQ500DE Inline Centrifugal fans mounted in the ceiling space, connecting to the Kitchen Stainless Steel Hood with insulated Mylar ductwork. The Industrial Laundry has exhaust systems connected to the GIRBAU Dryers & Steam Ironing machine. Other Ventilation Systems are installed to the Dirty Linen Rooms, (4) Cleaners Rooms (3) WC areas all having Blauberg Turbo Mixed Flow Inline Centrifugal Fans.

jonovington-4783

All rooms have a Ventilation System fitted to the Ensuite Bathroom with an Allvent NFX-15 ceiling mounted Header Fan.



This Project was completed in June 2016 as required by contract and is now serving the Residents at Thompson Health Care St Marys with Comfort & Controlled Air Conditioning.
